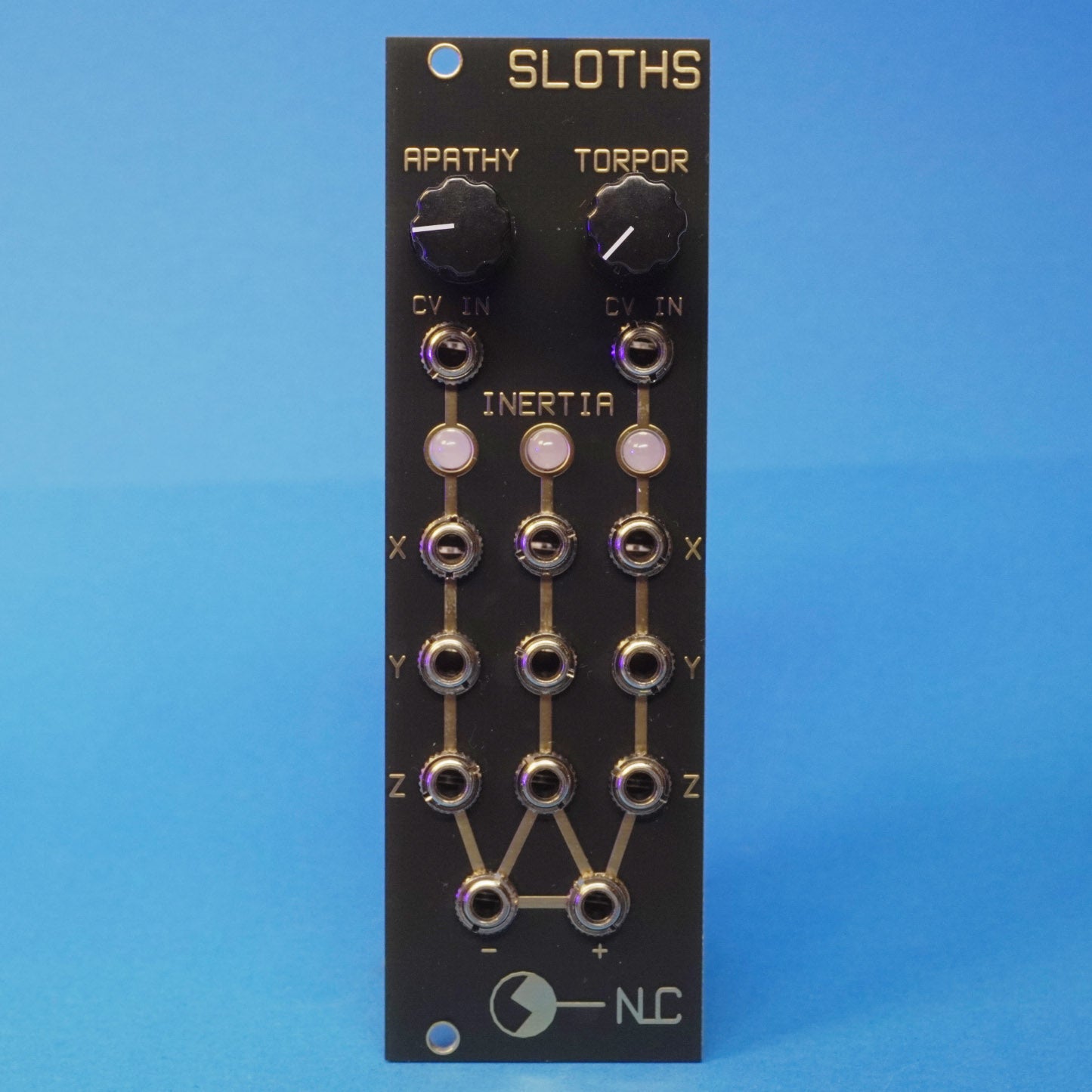

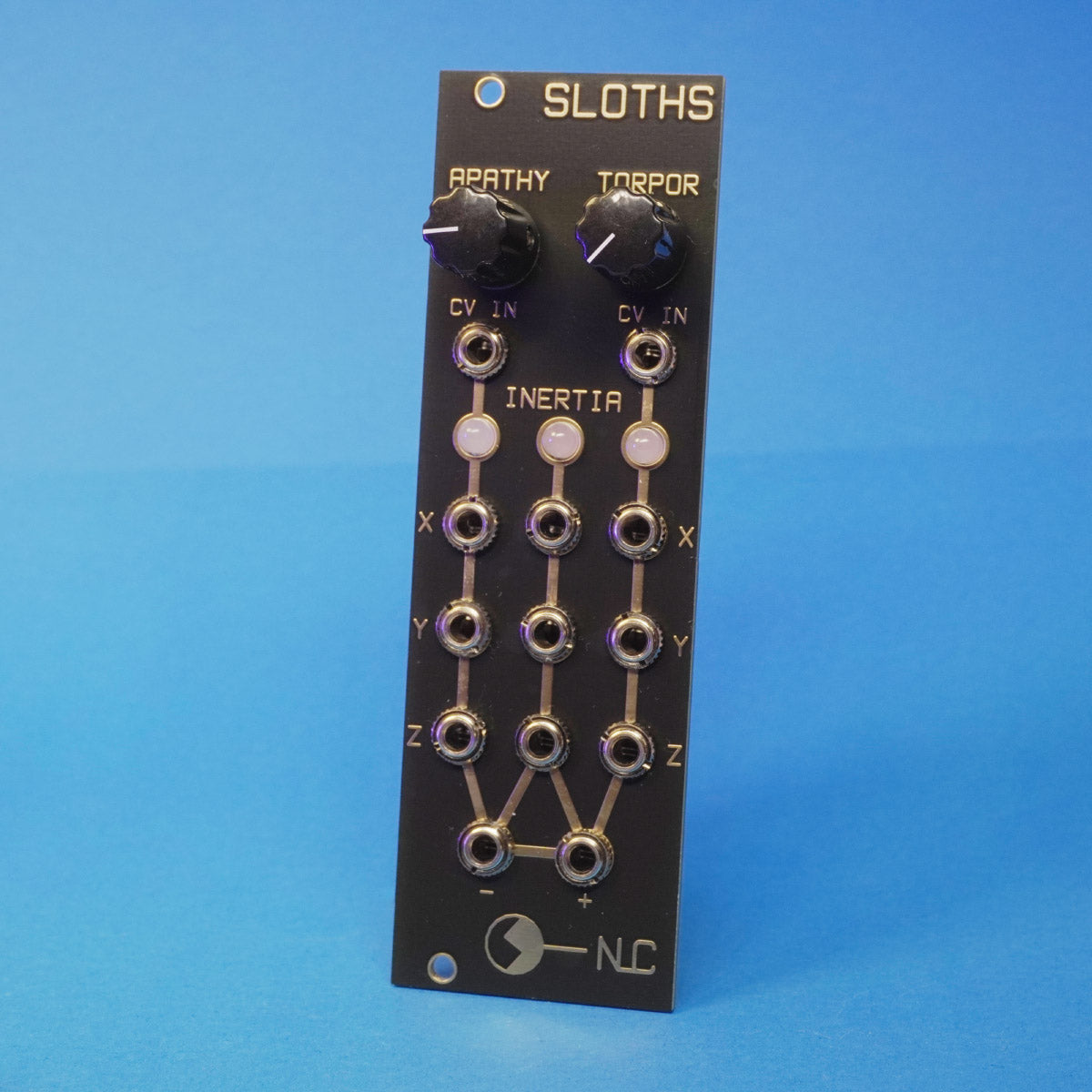

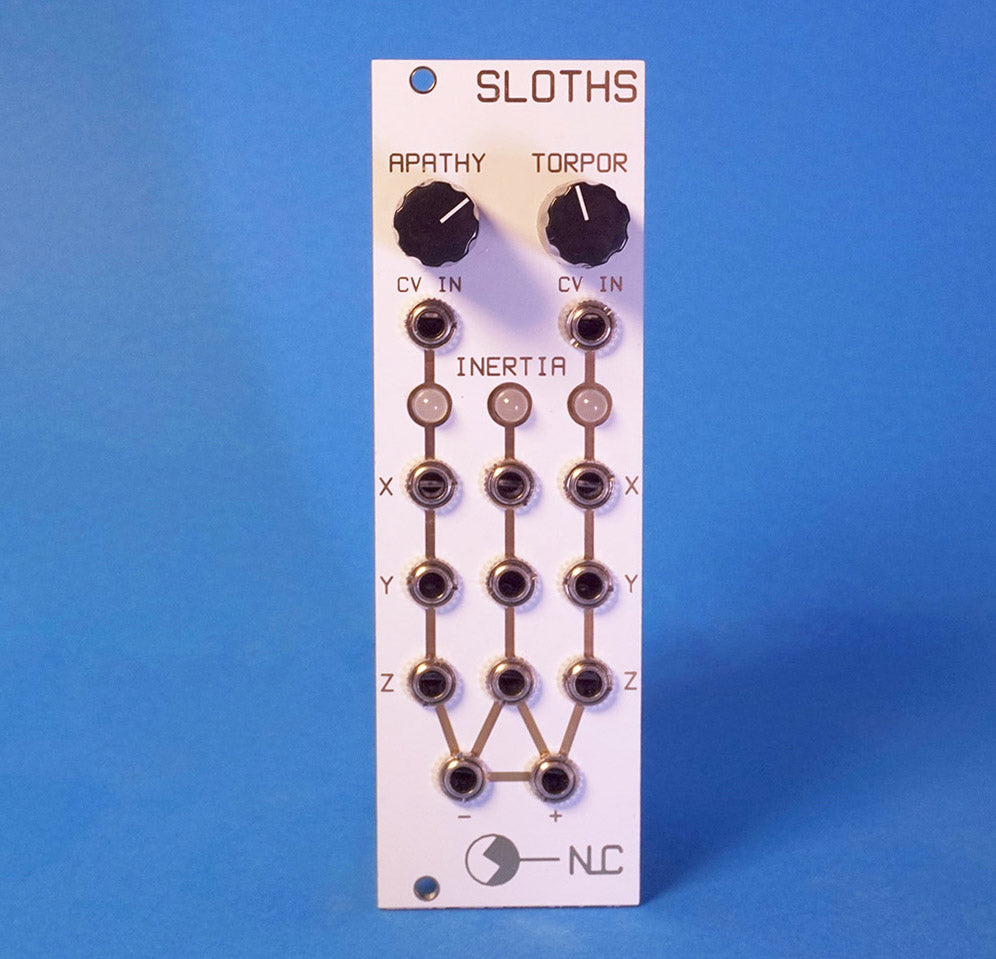

Nonlinearcircuits Triple Sloth

Red/Green indicator LEDs. Includes power cable & mounting hardware. Uses quality parts: genuine Thonkiconn jacks, quality Alpha/Songhuei pots, & trusted branded caps. Calibrated, tested, ready to rock.

A classic NLC module. It contains 3 Sloth chaos circuits. Each one runs at a different rate; Torpor takes approx. 15-30 seconds to travel around 2 strange attractors, Apathy takes 60-90 seconds and Inertia takes 30-40 minutes.

The pots for Apathy and Torpor do not specifically alter the frequencies, rather the weight of the outputs.There are no controls for Inertia, it does what it wants.

The X, Y & Z outputs for each Sloth are taken from different stages of the circuit and are all different to each other, although Z is simply the inverted version of Y. The three Z outputs are also fed into a Difference Rectifier and the results of this are available from the + and – outputs at the bottom of the panel.
