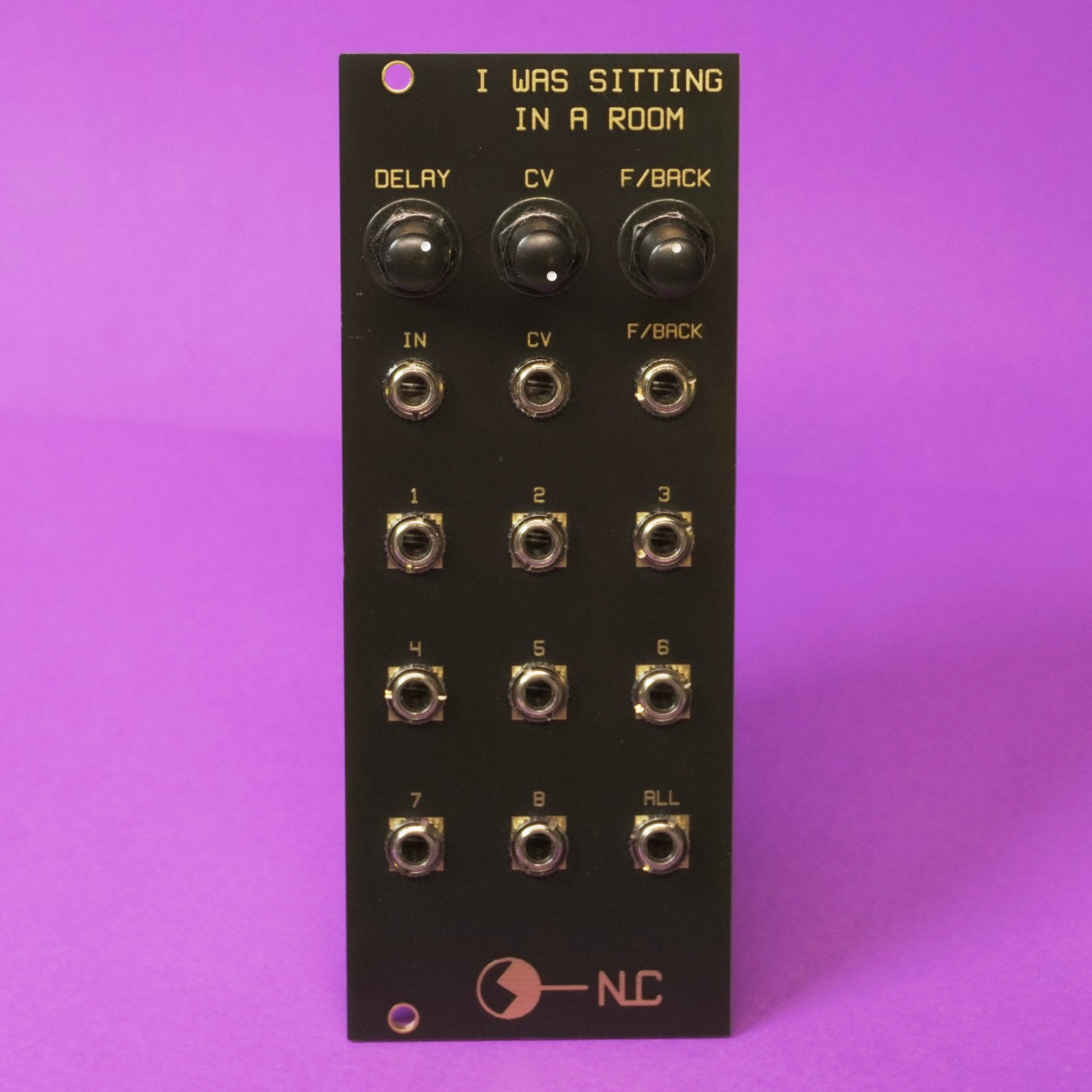

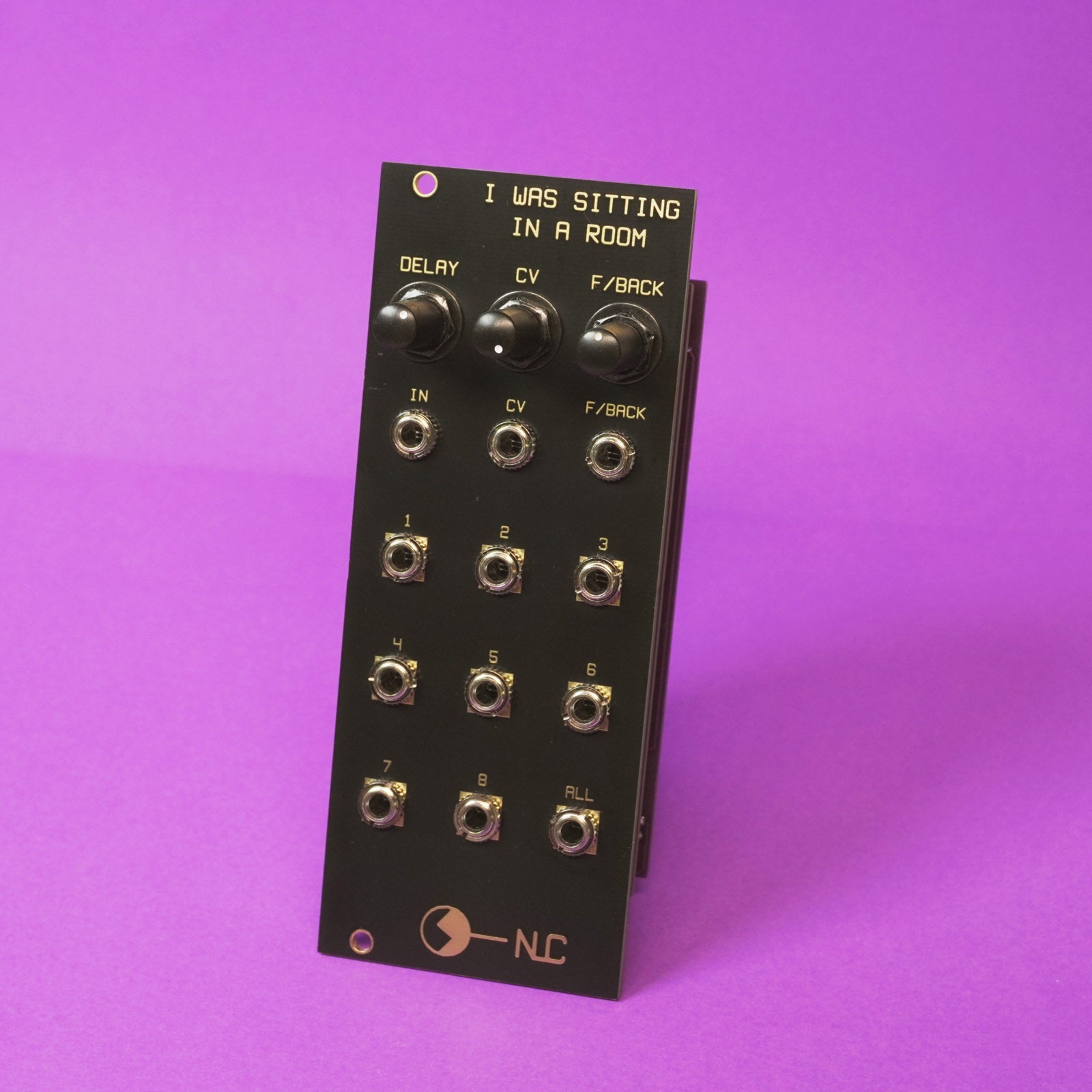

Nonlinearcircuits I Was Sitting In A Room

Built according to the recommended settings by NLC - longer ranges on initial delay, room size of 27metres, and lowpass filtering on input and 'all' stages.

Includes power cable & mounting hardware. Uses quality parts: genuine Thonkiconn jacks, quality Alpha/Songhuei pots, & trusted branded caps. Calibrated, tested, ready to rock.

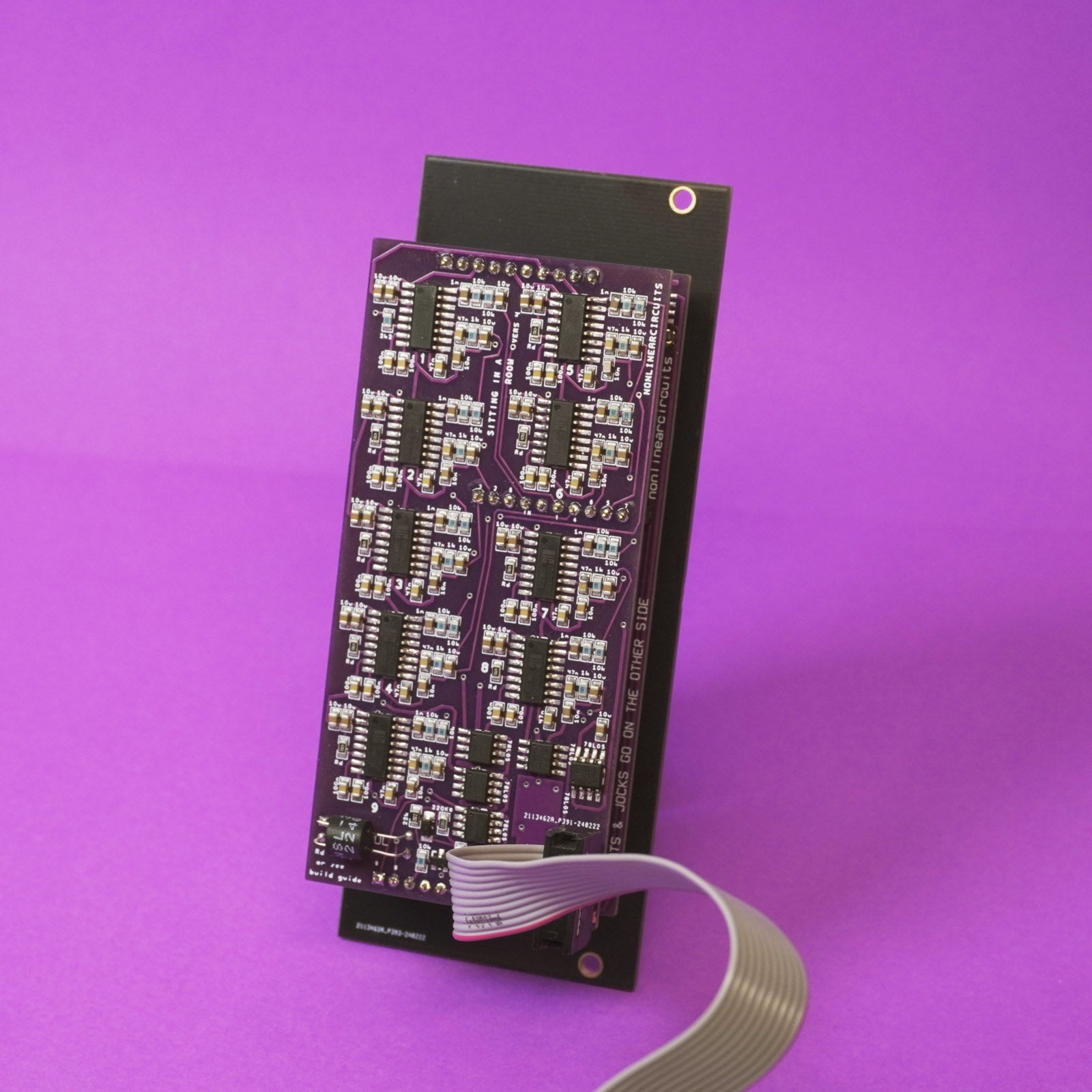

This module has nine PT2399 chips in series. The 1st has voltage controlled delay time, the following 8 have fixed delays. It is noisy, but that is the whole point. At certain settings, you can get some interesting effects such as an illusion of reverse delay.

By default, out6 is fed to the feedback input, but feel free to try different outs. The effect is usually quite different using odd or even numbered outs as feedback. Even better, take one of the outs and process it thru a VCF or Phase shifter and then feed it back.

There are outputs for stages 1-8, 9 misses out but is summed into the ALL output with everything else
