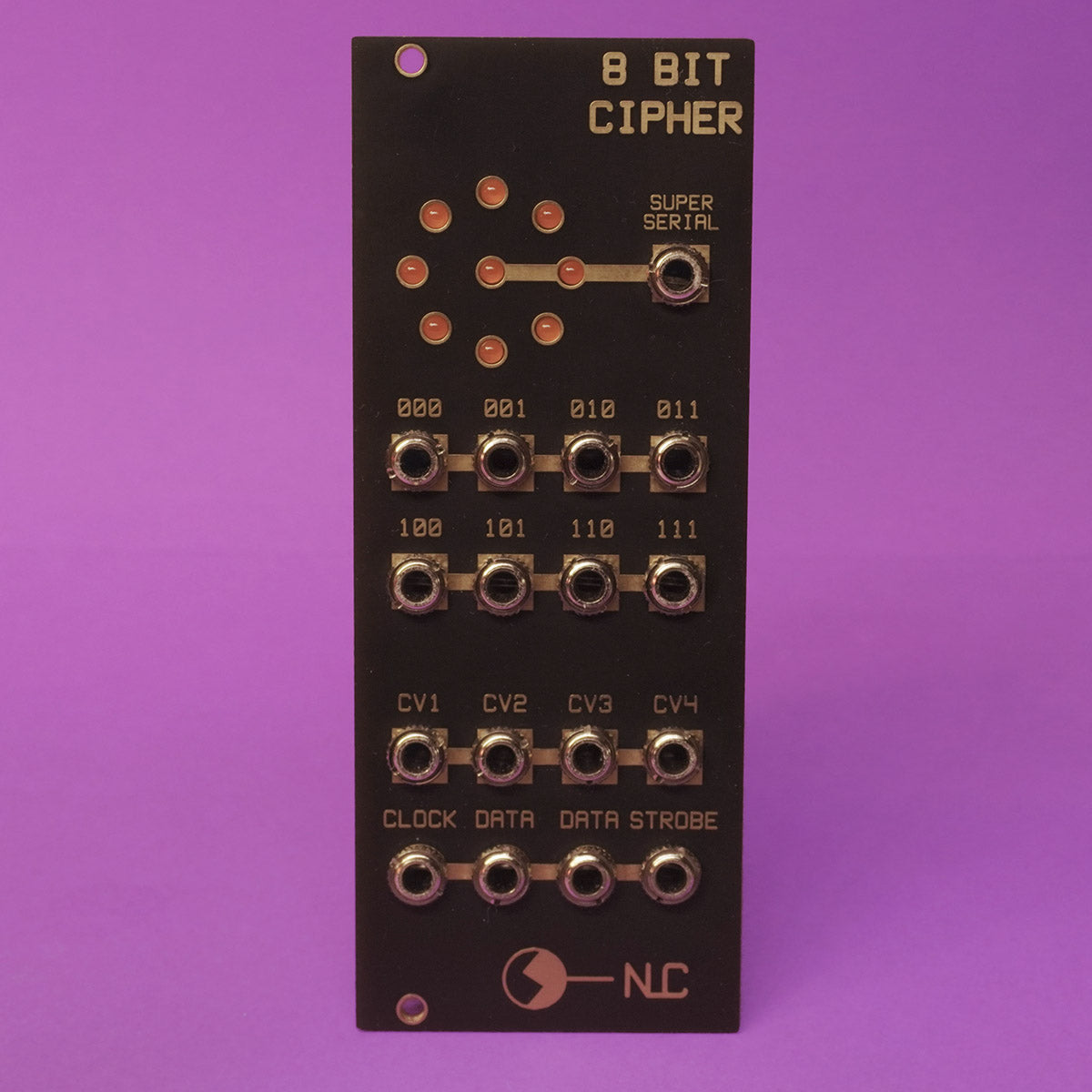

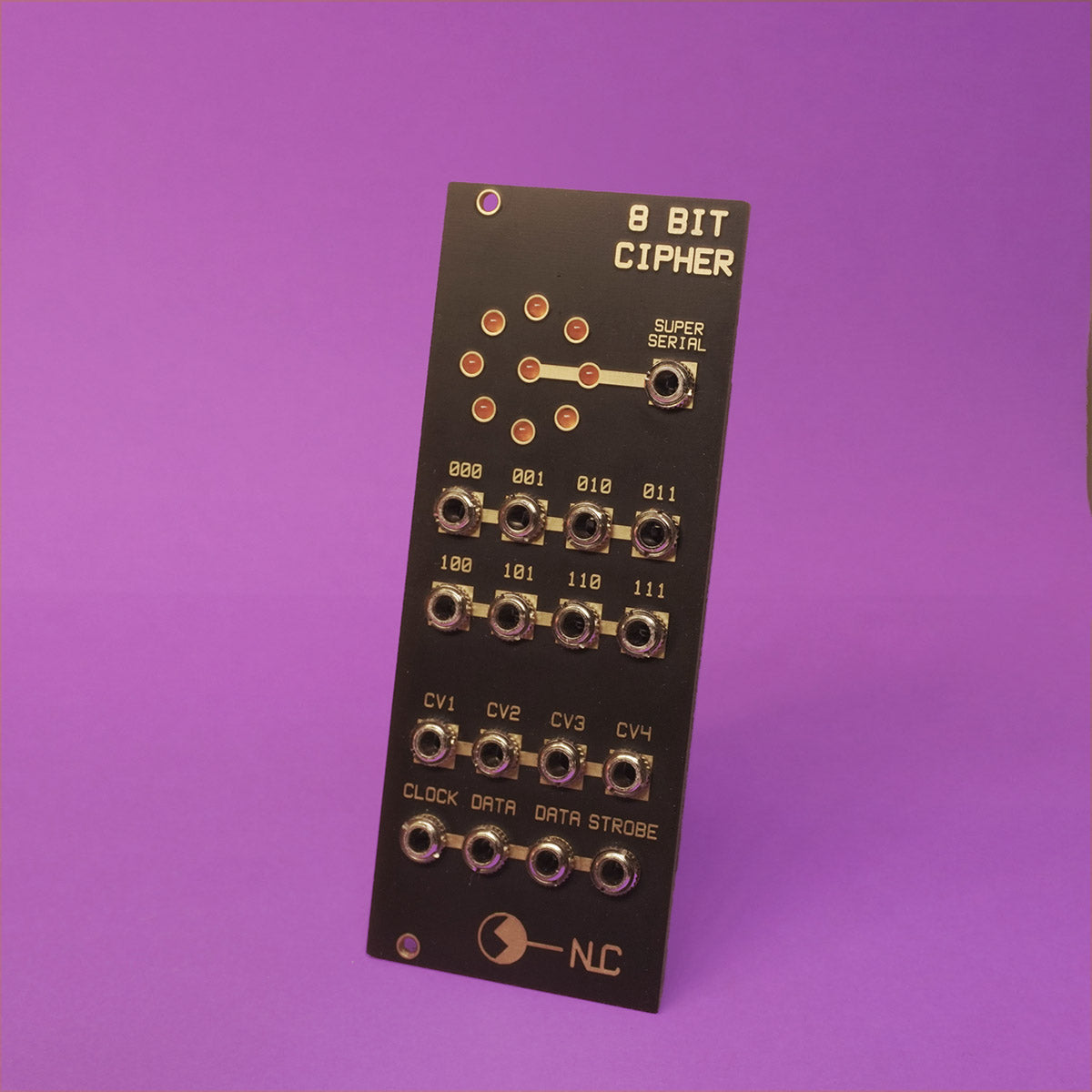

Nonlinearcircuits 8bit Cipher

This module is based on the one part of the Buchla Source of Uncertainty/Random Voltage source, although it has been modded somewhat to obtain 4 CV and 9 gate outputs. It requires a clock signal and a signal on at least one of the data inputs to operate.

The strobe input makes it a bit like an 8 bit sample and hold. If nothing is inserted into the strobe jack the module carries on as normal. When a signal is introduced to strobe, the data obtained from the data jack is only loaded onto the outputs when the signal is high.

Like virtually everything else in the NLC synth, any signal crossing 1V can be used as a clock or data signal.

The best way to see what it does is feed it two signals from different sources, say two LFOs. Leave the clock signal steady and vary the frequency of the signal to the data input. Also try different wave-shapes such as square, sawtooth or triangle. You will see how the data is shifted down thru the stages.

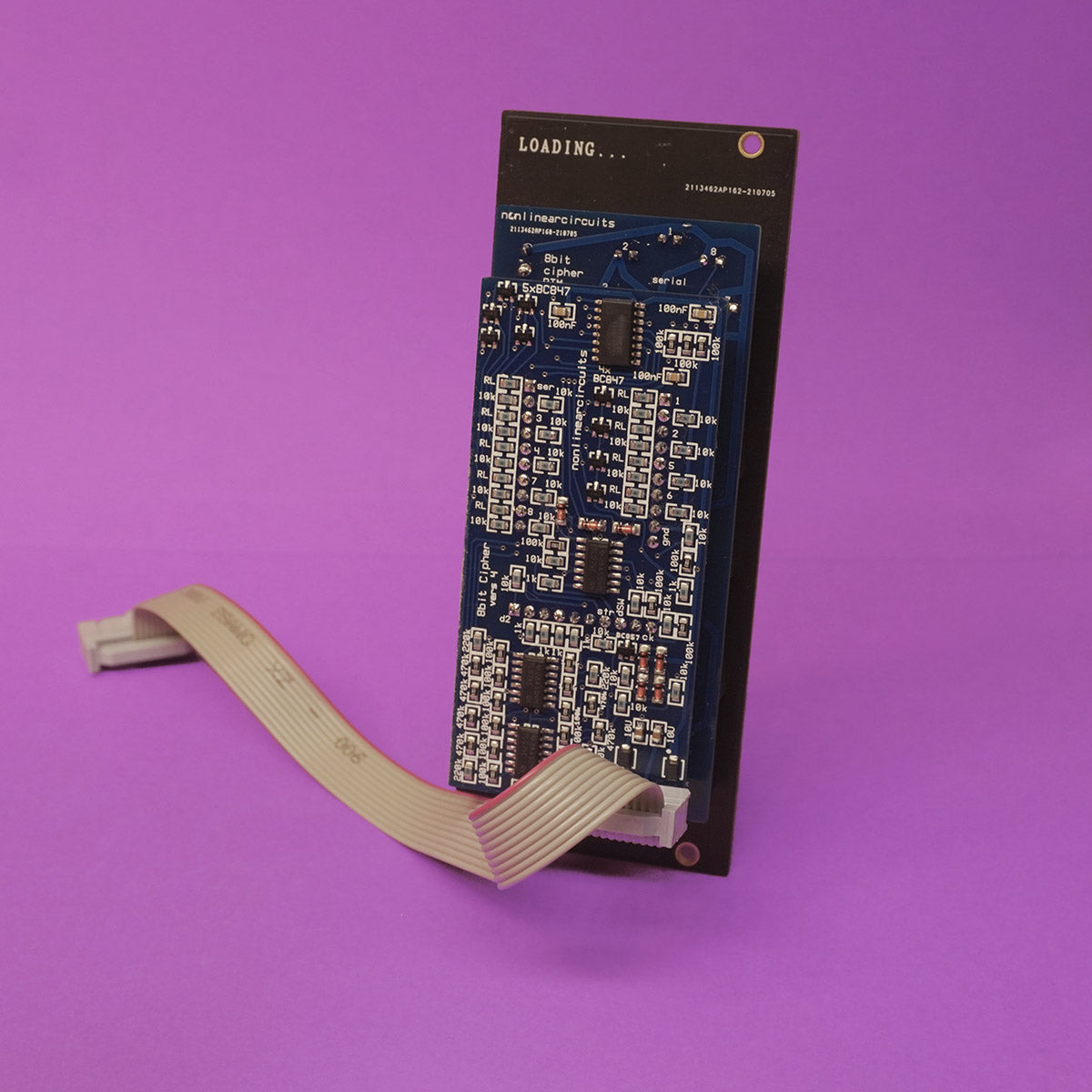

Includes power cable & mounting hardware. Uses genuine Thonkiconn jacks, quality Alpha pots, & trusted branded caps. Calibrated, tested, ready to rock.
