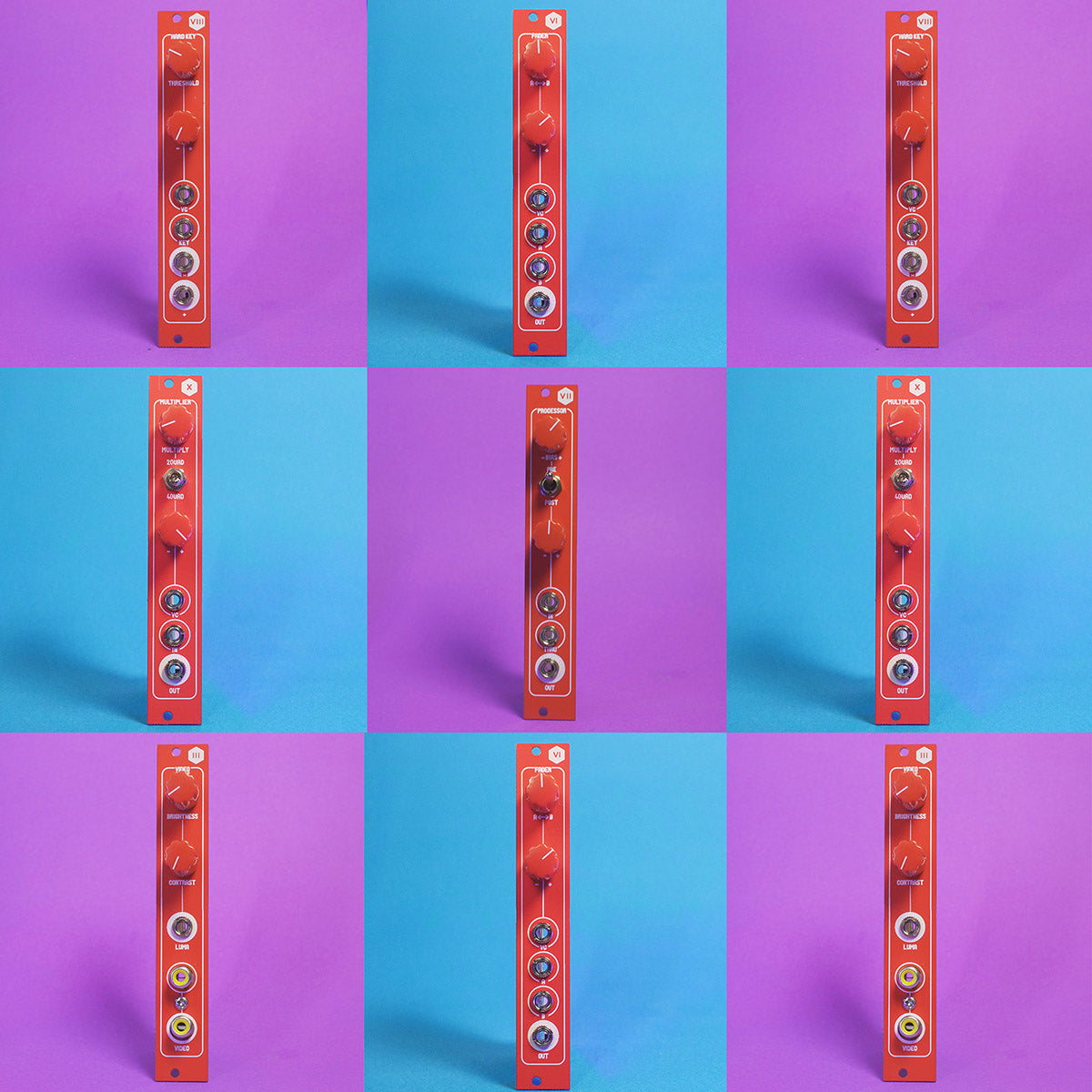

Cadet Series

The LZX-compatible Cadet system represents building blocks suitable for a Eurorack video system. Each module is 4HP wide and up to approx 65mm deep.

• Cadet 1 - Sync Generator: NTSC/PAL sync generator for video synthesis systems
• Cadet 2 - RGB Encoder: RGB to NTSC/PAL composite video encoder

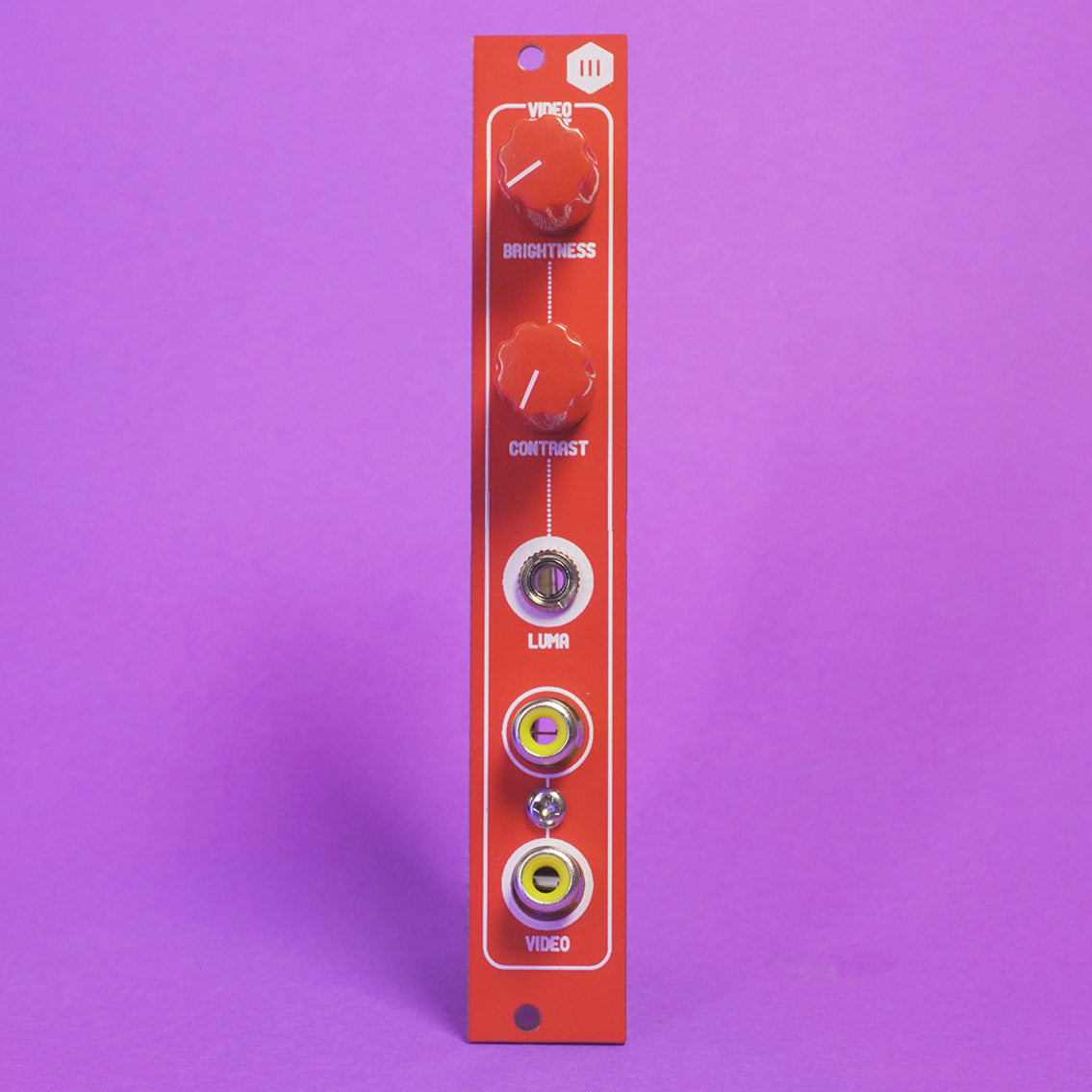

• Cadet 3 - Video Input: Input amplifier
• Cadet 4 - Dual Ramp Generator: Dual Waveform Generator
• Cadet 5 - Scaler: [±5V to +1V] 4-channel wide bandwidth voltage scaler

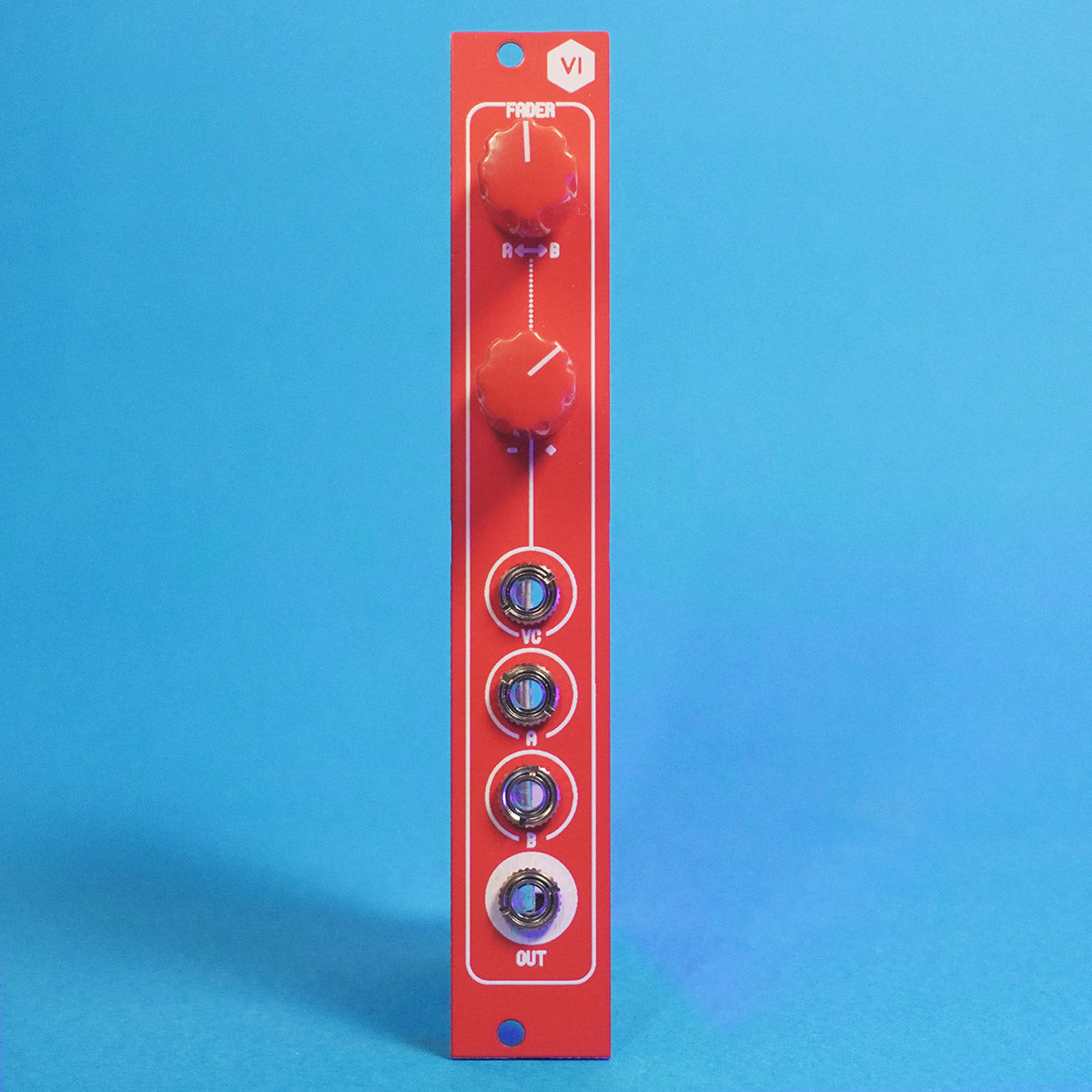

• Cadet 6 - Fader: 2-channel wide bandwidth crossfader

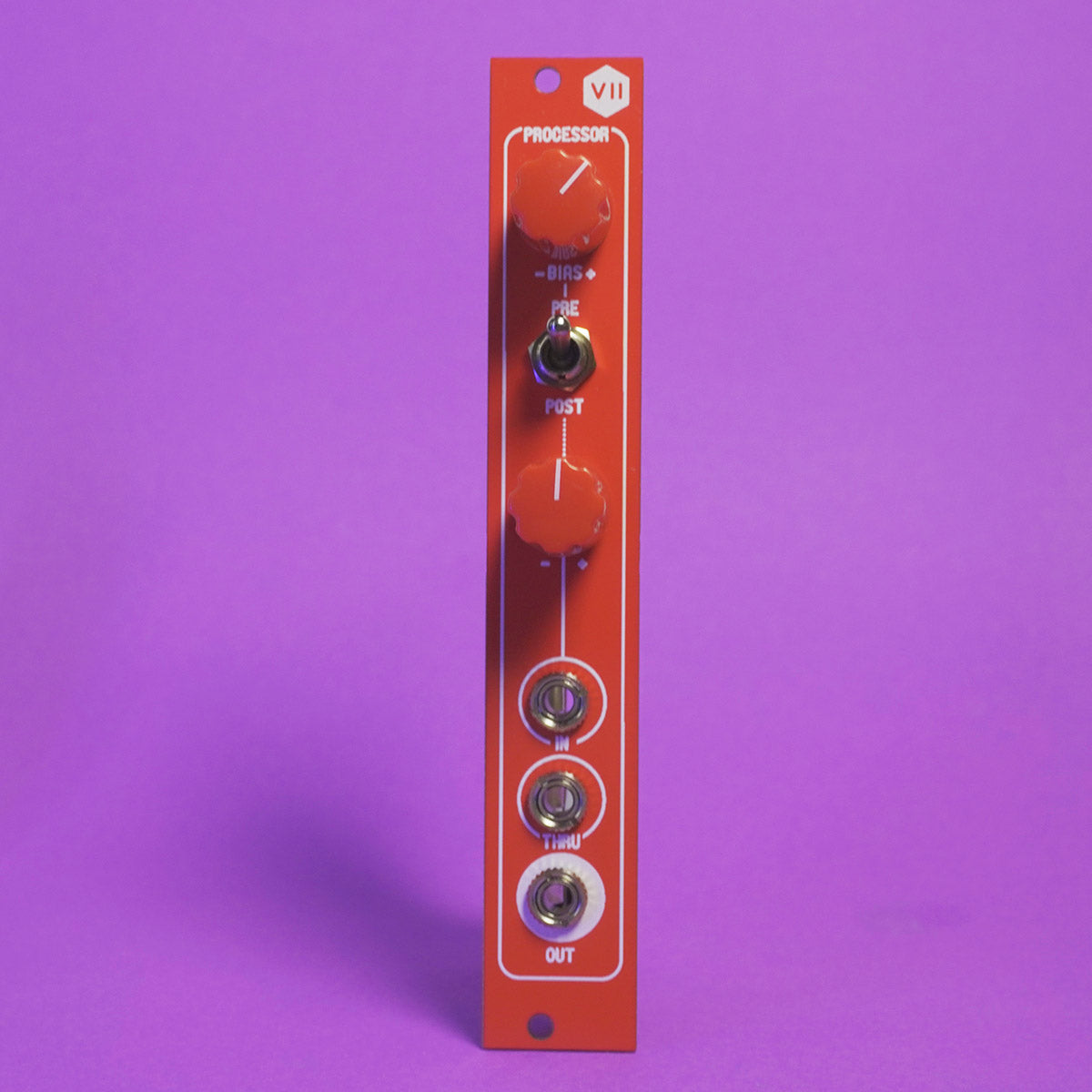

• Cadet 7 - Processor: Wide bandwidth voltage processor and 2 channel mixer

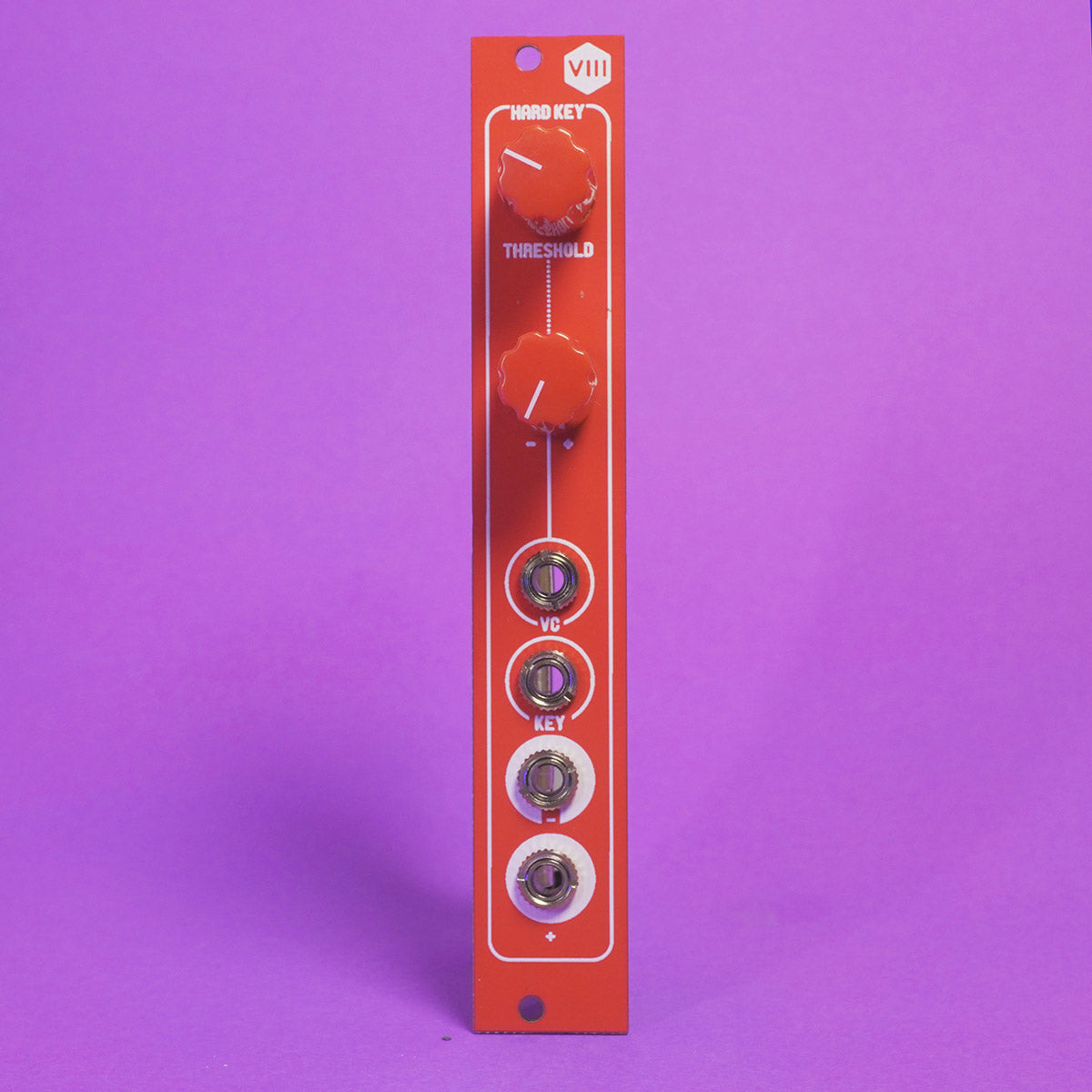

• Cadet 8 - Hard Key Generator: Wideband voltage comparator with voltage controlled threshold level
• Cadet 9 - VCO: Wideband triangle core VCO
• Cadet 10 - Multiplier: 2-quadrant or 4-quadrant multiplier
